Features

• Spherical roller bearing with two rows of rollers
• pivoting inner ring, misalignments and shaft deflections can be compensated
• suitable für very high radial and relatively high axial loads in both directions
• medium series with average weight
• with tapered bore for mounting by means of adapter sleeve
• cage material: brass. Special strength and durability under extreme conditions such as shock loads and vibrations, high acceleration forces and lack of lubrication
• seal: open (without seal); for higher speeds than with sealed spherical roller bearings and easy relubrication
• good fixed bearing property, but can also be used as a floating bearing, each in both directions

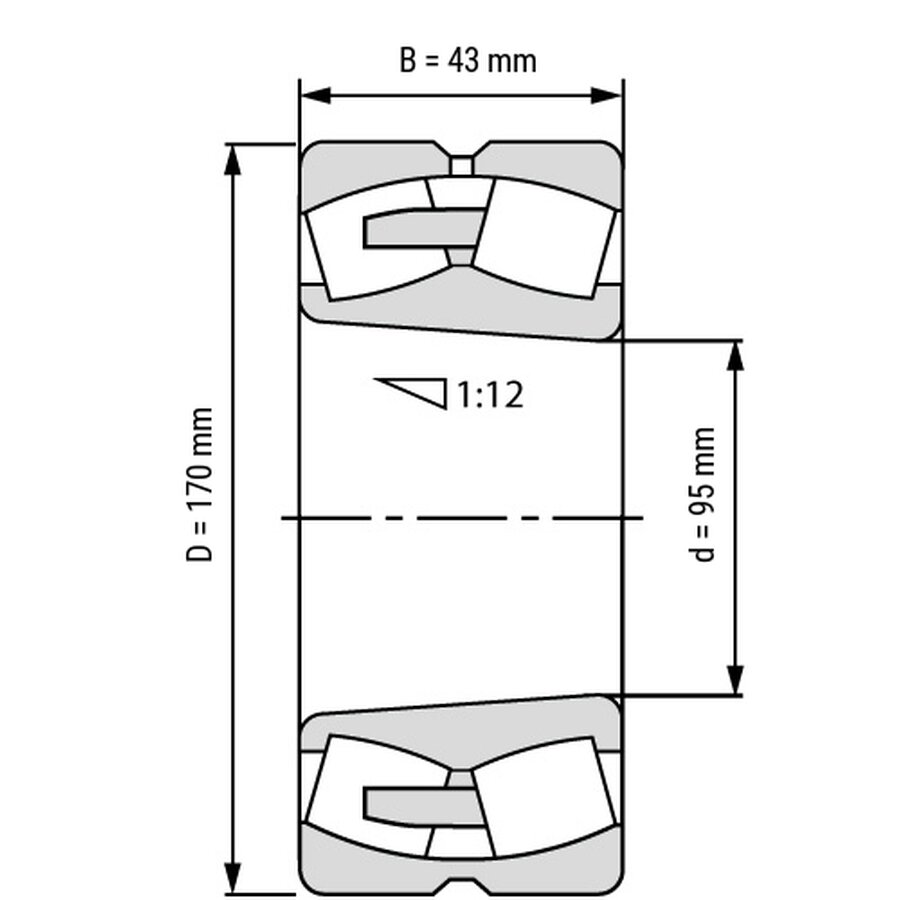

Technical Data

Inside Ø (mm):	95
Outside Ø (mm):	170
Width (mm):	43
Tolerance for inside-Ø (mm):	0/-0,02
Tolerance for outside-Ø (mm):	0/-0,025
Tolerance for width (mm):	0/-0,2
Ring Material:	Rolling bearing steel
Bore:	tapered (K)
Cage Material:	Brass
Rolling Element Material:	Rolling bearing steel
