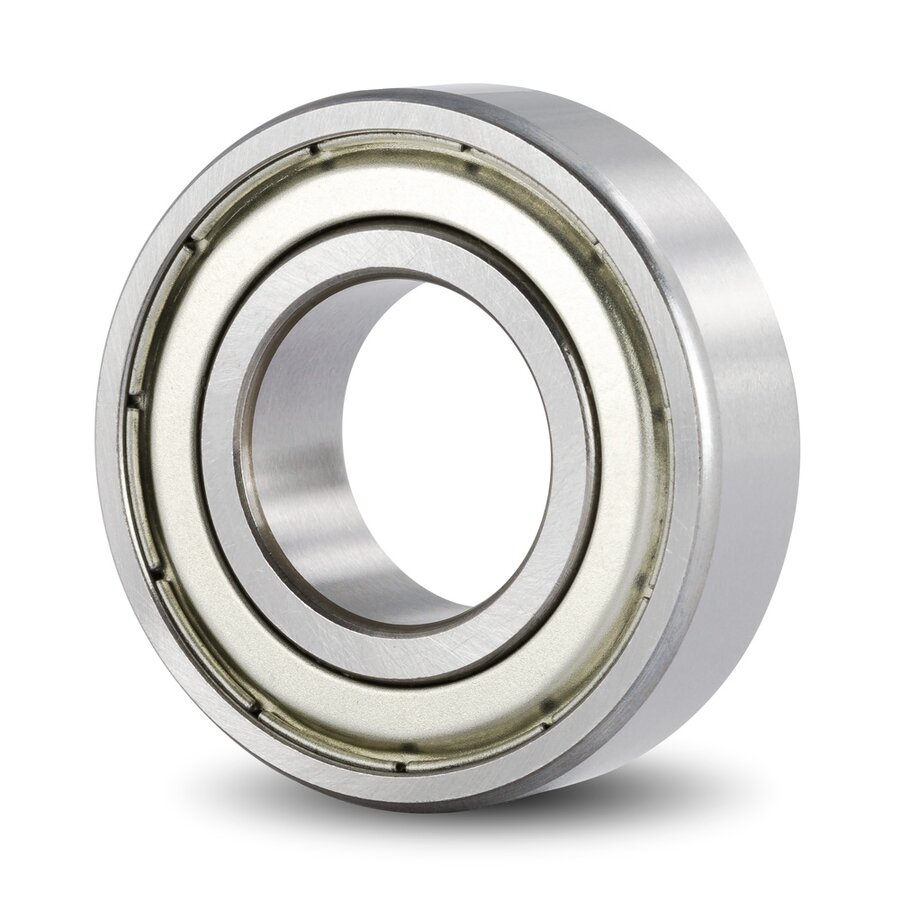

Features

• extra light series with compact dimensions and low weight
• suitable for high radial loads and light axial loads in both directions
• offers high running accuracy, quiet running and high speeds
• seal: contact lip seal on both sides made of rubber (2RS) for high sealing effect
• If you need this bearing in RS design with only one seal and one open side, you can simply remove one of the two seals: to the instructions
• good fixed bearing property, but can also be used as a floating bearing, each in both directions

Technical Data

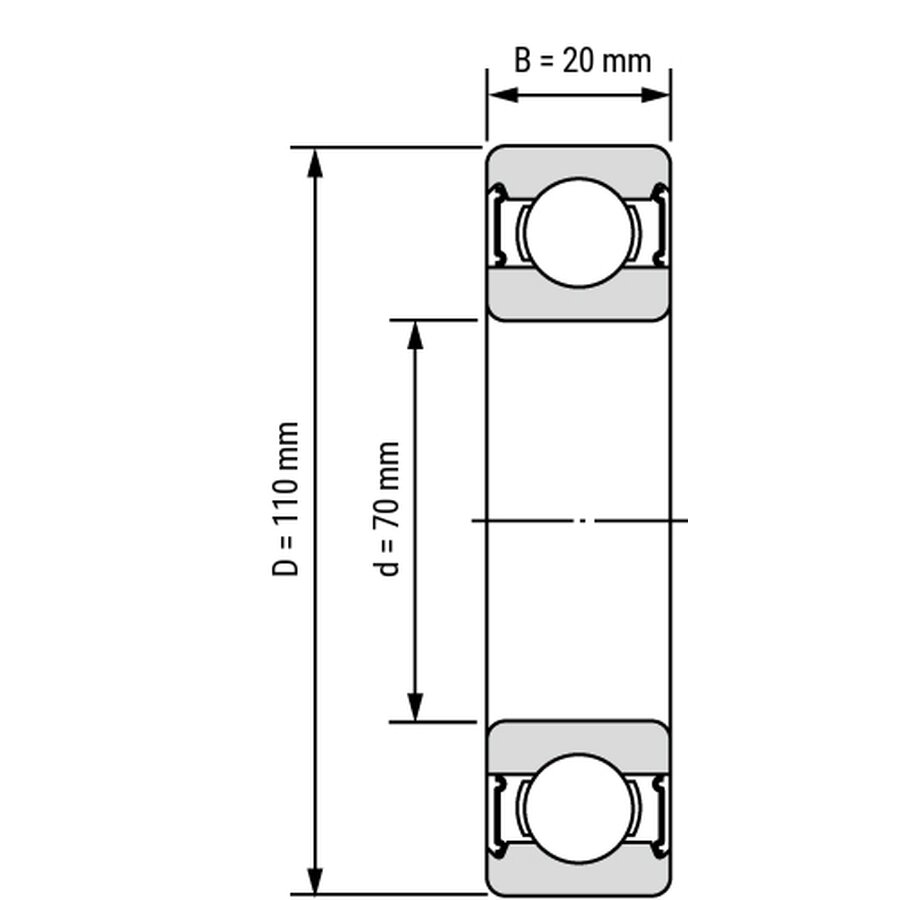

Inside Ø (mm):	70
Outside Ø (mm):	110
Width (mm):	20
Tolerance for inside-Ø (mm):	0/-0,015
Tolerance for outside-Ø (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	2RS
Ring Material:	Rolling bearing steel
Internal Clearance:	CN (Standard)
Cage Material:	Sheet Steel
Flange:	no
Slot & Snap Ring:	no
Rolling Element Material:	Rolling bearing steel
Full Complement Ball Set:	no
